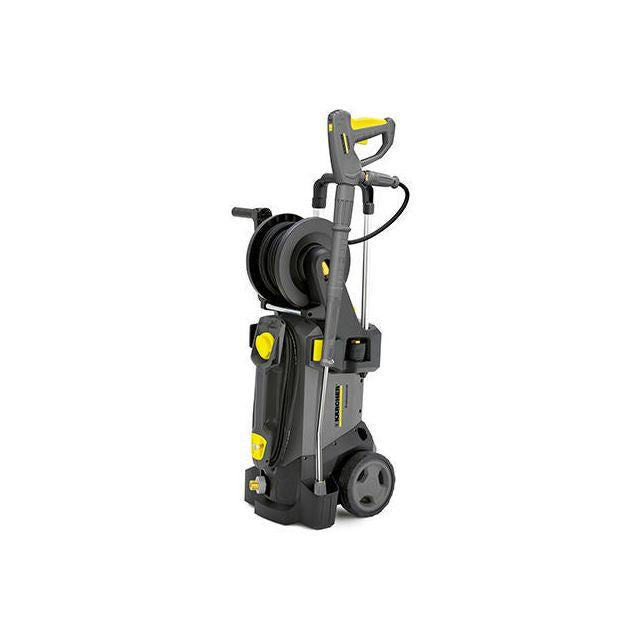

The HD 5/15 CX Plus is a compact, powerful single drum washer designed for cleaning:

• Yard
• Workshop
• Company fleet
• Machinery

Key features include:

• Practical accessory storage
• Automatic pressure relief
• 3-cylinder axial piston pump with ceramic pistons and brass cylinder head for long service life
• Water flow of 500 l/h and 150 bar working pressure
• EASY!Force flush handle concept that reduces the force needed to hold the handle to zero
• EASY!Lock quick lock for faster and easier connections, up to 5 times faster than standard screw couplings
• EASY!Force and EASY!Lock hose reel with 15 m high pressure hose
• Rotojet included

Specifications:

• Power supply: 1 / 230 / 50 (Ph/V/Hz)
• Water capacity: 500 l/hour
• Working pressure: 150 bar / 15 MPa
• Max. pressure: 200 bar / 20 MPa
• Power: 2.8 kW
• Electric cable length: 5 m
• Weight: 28.3 kg
• Dimensions (L x W x H): 380 x 370 x 930 mm
